Logo_X4SS_253x52  Ribbon is not inserted correctly

09.12.2024







Subject

Content

Remarks

Affected Printers

all


Cause

The notching of the paper core is not snapped in correctly into the guidance.

Some older ribbons have no suitable notch for the respective printer. For example Eltron ribbons in the TSC printer.

Troubleshooting

Please check the correct installation of the ribbon.

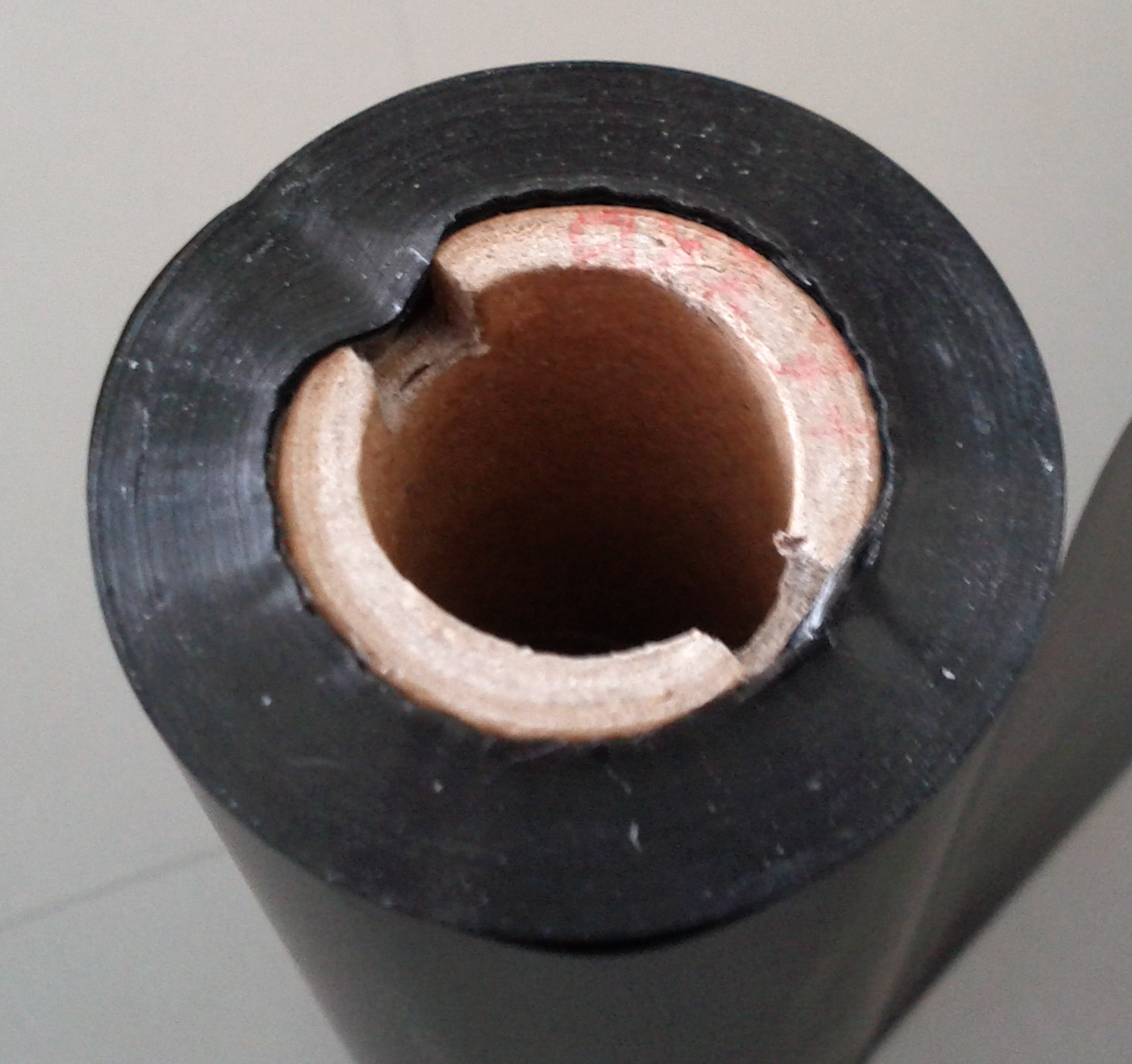

Take care of the notches on narrow ribbons. Ribbon material tends to block the notches.



Farbband_schmal_01
